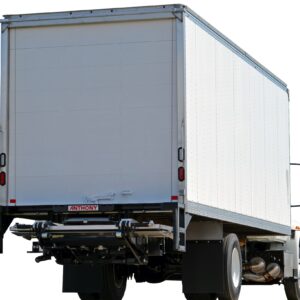

MTU-GLR Series TUCKUNDER™

Lifting Capacities (lbs):
2500, 3000, 4000, 5000, 6000

KEY ADVANTAGES
– GLR – Gentle Level Ride

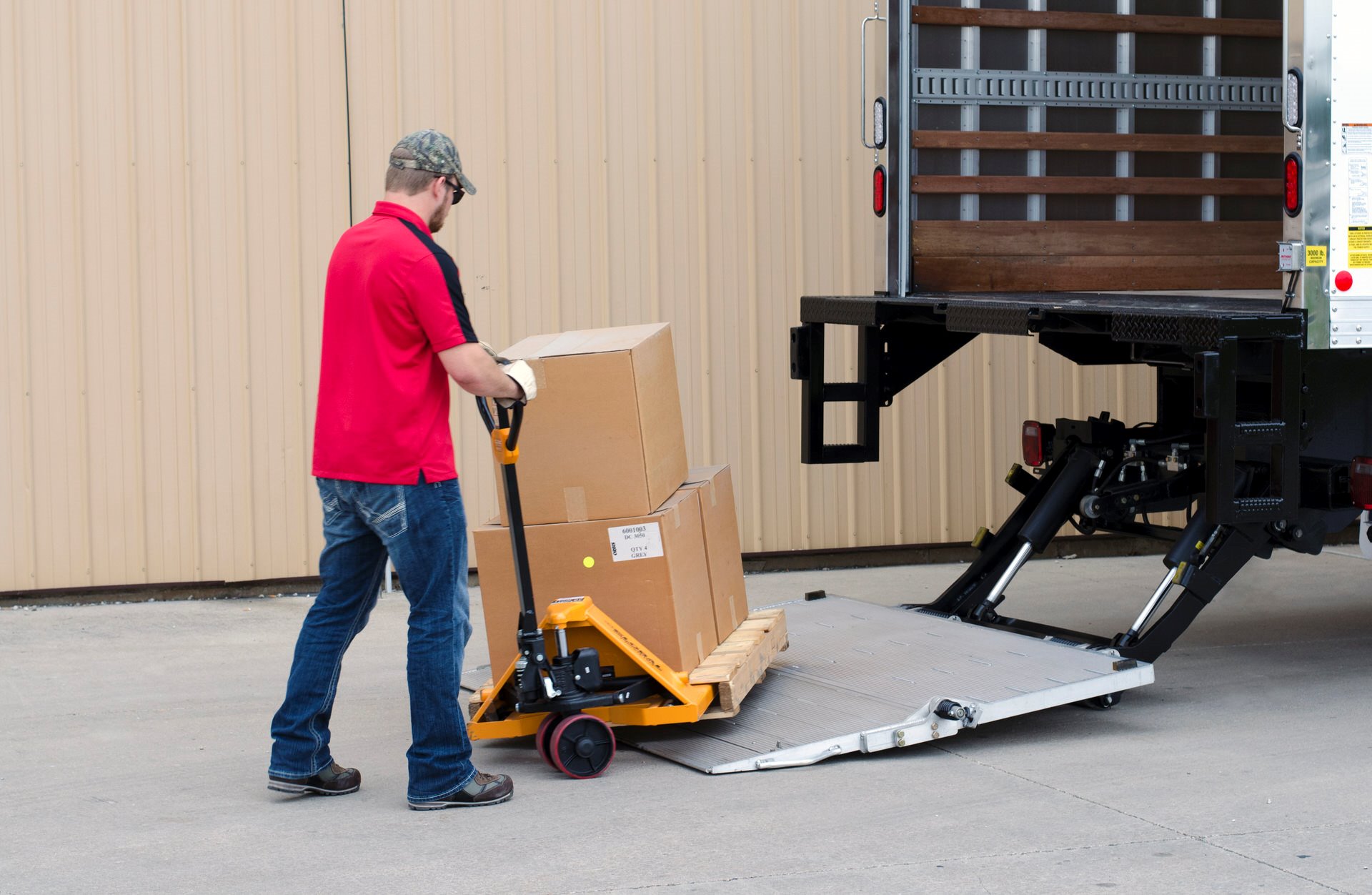

Smooth, level up-down operation. Platform tilts gently at ground and re-levels before lifting cycle begins.

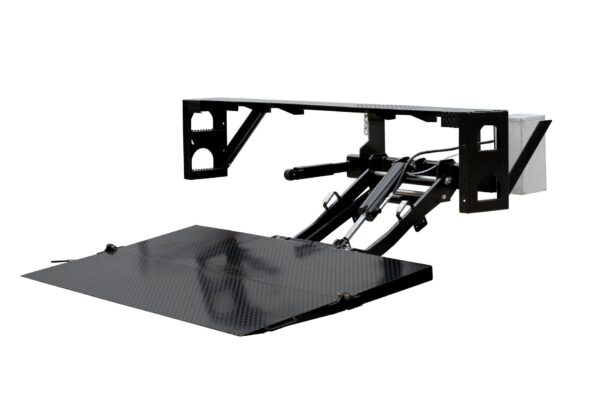

– Twin Cylinder Drive Powerful lift with low pressure helps to extend hydraulic component life.

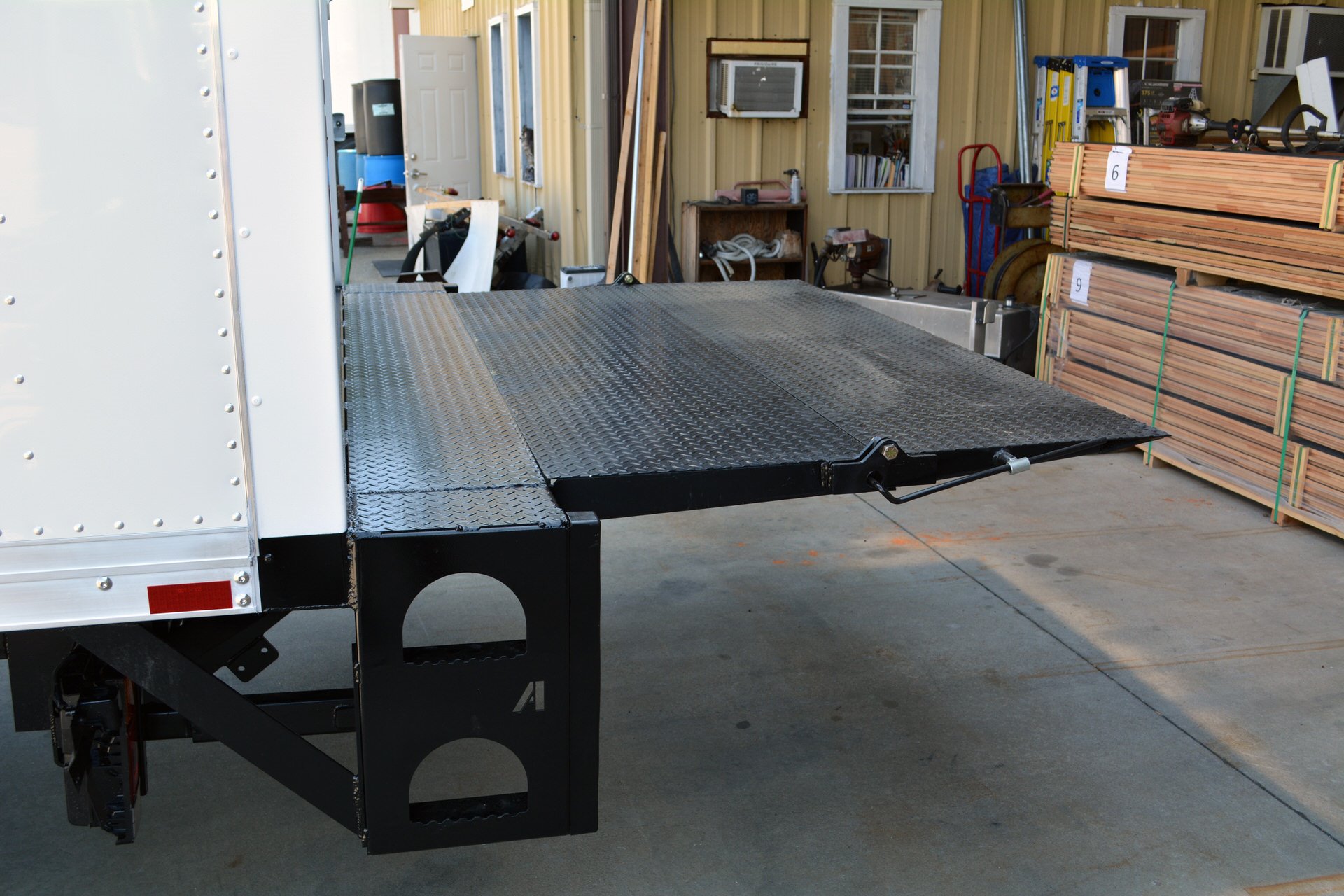

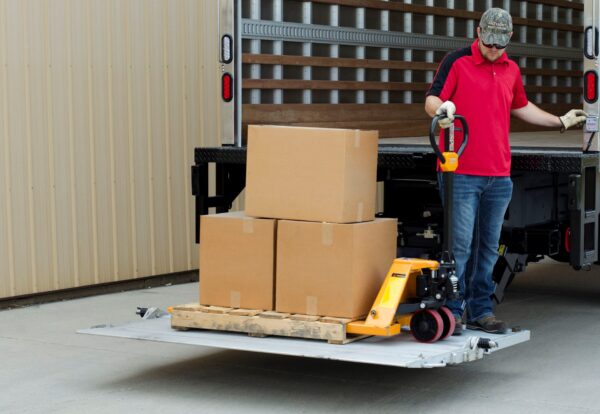

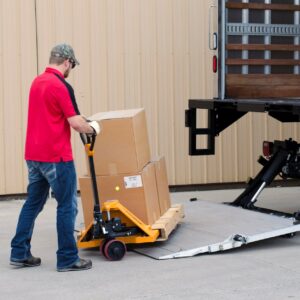

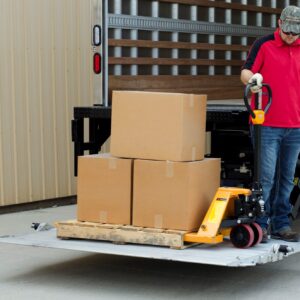

– Wedge Platform Wedge design provides easy, secure loading.
– Power Down Reliable cycle time in all weather conditions.
– Lifetime Warrantied Service Free Bushings Used at all critical pivot points to reduce wear without the need for routine lubrication

STANDARD FEATURES

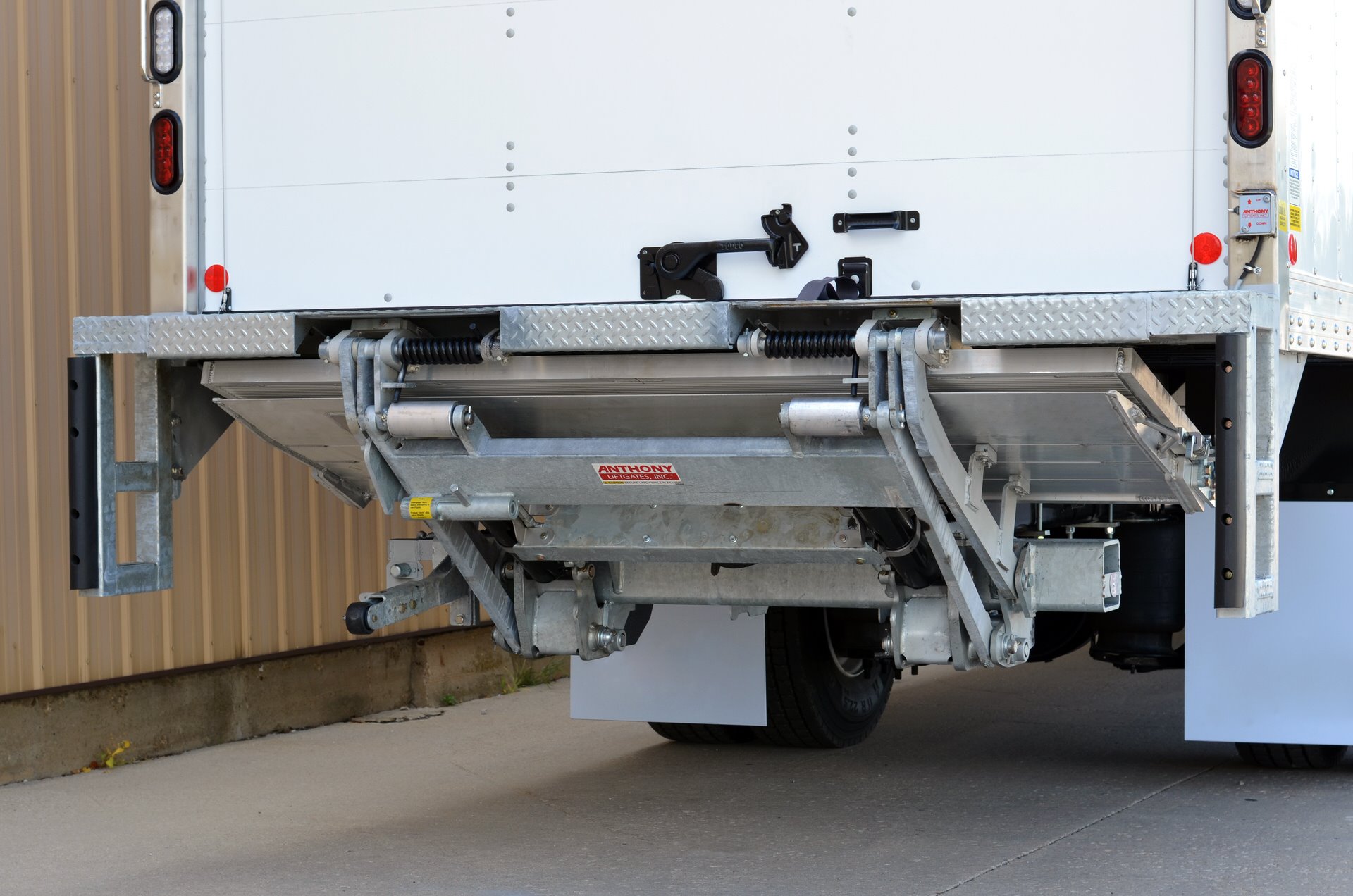

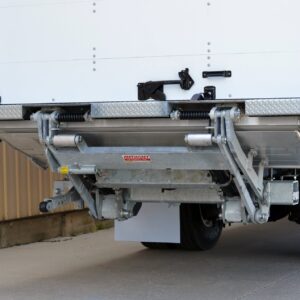

– Spring Assist Platform Dual torsion springs provide effortless platform operation.
– Ground Contact Rollers Rollers prevent scraping damage to liftgate and concrete or asphalt.
– HD Mechanical Safety Latch Redundant-system stowage in addition to hydraulic lock.
– Max Duty Dock Bumpers Helps protect floor extension from contact with dock. Includes rubber bumpers.
– EZ Mount Ships factory assembled, filled, and tested with notched center mark for easy installation.
Floor extension may be bolted to the truck.
– Circuit Protection 200 Amp fuse protects truck wiring from a “dead short”.
– CHS – Centralized Hydraulic System All sensitive hydraulic and electrical components housed safely within the
stainless steel pump box.
– Marine Duty Potted Toggle Switch Heavy duty toggle, potted to permanently separate and seal electrical connections
from corrosion.

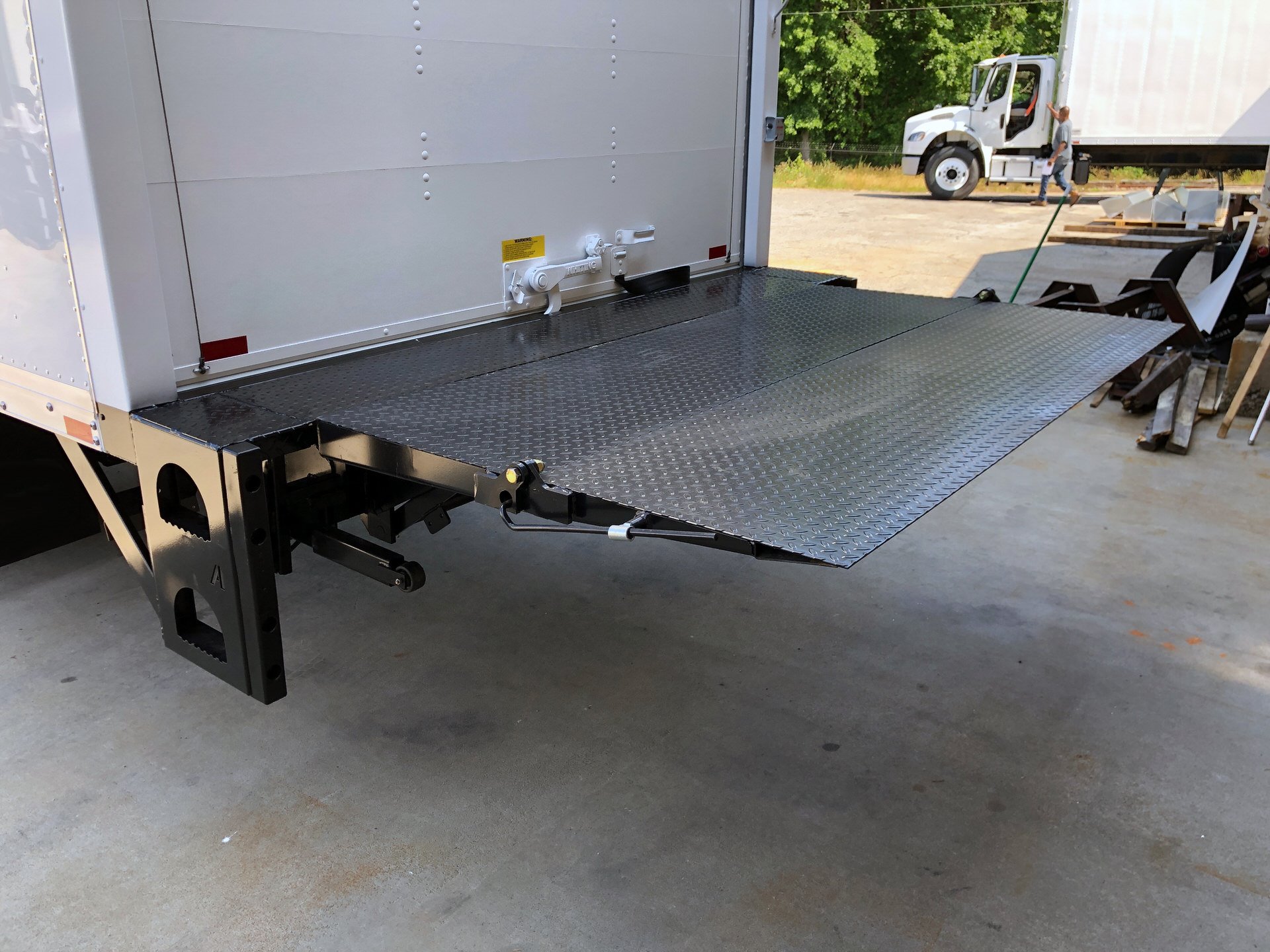

– 3/16” Steel Floor Extension Rugged and attractive surface.
– Industry-Leading Warranty 3 years mechanical + 3 years electrical & hydraulic, parts and labor.
– Pressure Compensated Flow Valve Constant, controlled speeds at all times.
Prevents “free-fall” under certain hydraulic failures.
– Cab Cutoff Switch Prevents unauthorized liftgate operation.
– Anthony 3-Step Powder Coat Steel components are washed, shot blast prepped, and coated with premium finish.
